Wholesale Price China Heat Exchanger - SiC wear resistant liner/tile – ZhongPeng
Wholesale Price China Heat Exchanger - SiC wear resistant liner/tile – ZhongPeng Detail:
Shandong Zhongpeng are one of the leader of SiC wear resistant product manufacturer in China.
All products are customizable. If you have drawings or plans, we can help to achieve the application of the material in new conditions as soon as possible.
General Application: SiC Ceramic liner/Tiles have excellent abrasion resistance qualities and can be used in pipes, cyclone, elbow, cone, spigot and hoppers in mineral processing plants and power generation.
- 1. Moh’s hardness of SiC is 9 (Hv0.5=2400) which is higher than that of alumina (Hv=1800). Typically, SiC ceramics will last approximately 5~10 times longer than Al2O3 in different applications.
- 2. SiC products have uniform structure and good density. Its internal and external part are both wear resistant. Alumina products have the problem of inconsistent surface and internal densities.
- 3. With German technological formula, SiC can be processed into different sized, large sized and shaped products.
- 4. SiC has low coefficient of expansion.
- 5. SiC products are corrosion resistant, high temperature resistant, oxidation resistant, etc.
| NO. | Appilcation | |||
| 1 | Cyclone Liner | |||
| 2 | Spigot | |||
| 3 | Pipes, Tee | |||
| 4 | Elbow & Bends | |||
| 5 | Radian plates | |||
| 6 | Inlet | |||
| 7 | Metal Composite Pipeline with SiC Lining | |||
| 8 | Metal Composite Plates…… | |||
| 9 | …… | |||
| 10 | Customized Irregular Liner | |||
| 11 | …… | |||

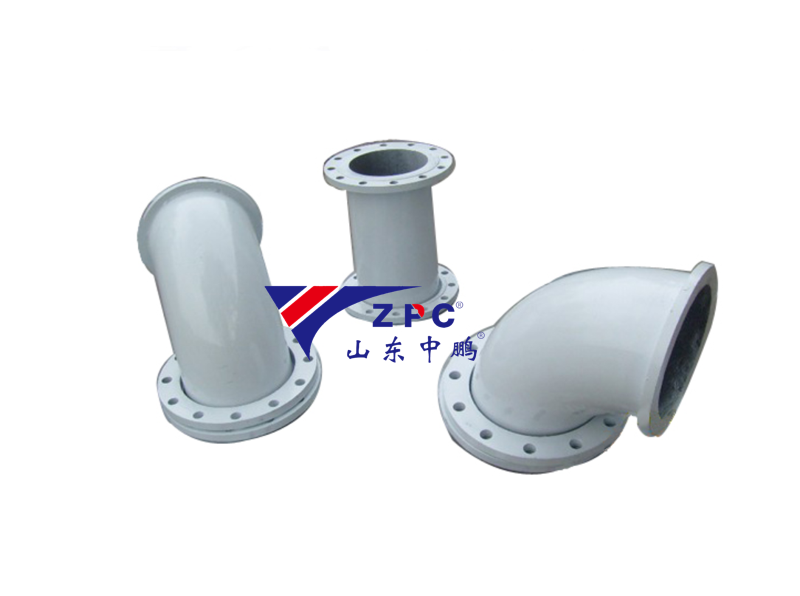

ITEM 1: SiC wear resistant liners: Tube, pipe, bends, elbow, cone tube,Tee, four-way pipe, etc
ITEM2: SiC wear resistant tiles blocks, etc.
Wear Resistanct Silicon Carbide Ceramic Tile sizes:
| ZPC silicon carbide ceramic Tiles Normal Sizes | |||||
| Part No. | Plain Tiles | Qty/㎡ | Part No. | Weldable Tiles | Qty/㎡ |
| A01 | 150*100*12mm | 67 | B01 | 150*100*12mm | 67 |
| A02 | 150*100*25mm | 67 | B02 | 150*100*25mm | 67 |
| A03 | 228*114*12mm | 39 | B03 | 150*50*12mm | 134 |
| A04 | 228*114*25mm | 39 | B04 | 150*50*25mm | 134 |
| A05 | 150*50*12mm | 134 | B05 | 150*100*20mm | 67 |
| A06 | 150*50*25mm | 134 | B06 | 114*114*12mm | 77 |
| A07 | 100*70*12mm | 134 | B07 | 114*114*25mm | 77 |
| A08 | 100*70*25mm | 134 | Trapezoid Tiles | ||
| A09 | 114*114*12mm | 77 | C | customized | |
| A10 | 114*114*25mm | 77 | Impact Tiles | ||
| A11 | 150*50*6mm | 267 | D | customized | |
| A12 | 150*25*6mm | 134 | Corner Tiles | ||
| A13 | 150*100*6mm | 67 | E | customized | |
| A14 | 45*45*6mm | 494 | Hecagonal Tiles | ||
| A15 | 100*25*6mm | 400 | F01 | 150*150*6mm | 45 |
| A16 | 150*25*12mm | 267 | F02 | 150*150*12mm | 45 |
| A17 | 228*114*6mm | 39 | Other Tiles/Plates | ||
| A18 | 150*100*20mm | 67 | G | customized | |
Product detail pictures:
Related Product Guide:
A Review of Superior Radiant Infrared Tube Heaters, SiC ceramic heat exchager
Understanding of Metal Tubing within Ceramic lining
Wholesale Price China Heat Exchanger - SiC wear resistant liner/tile – ZhongPeng, The product will supply to all over the world, such as: , , ,
Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China. SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.
