Silicon carbide ceramic tiles 150*100*25mm, 150*100*12mm, Ceramic Liner, tiles, plates, blocks, lining.

Pattern of angle impact abrasion Low angle sliding abrasion
When flow of abrasive material hits a wear surface at a shallow angle or passes parallel to it, the type of wear that occurs in friction is called sliding abrasion.

Advanced silicon carbide ceramics provide wear resistance and corrosion resistance ceramic tiles and lining. These products have been proven wear of equipment in conveying, processing, and storage process. Our tiles can be produced with thickness from 8 to 45mm. it is important to ensure that you can get the required products. SiSiC: Moh’s hardness is 9.5 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. It is 4 to 5 times stronger than nitride bonded silicon carbide. The service life is 5 to 7 times longer than alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. Wear resistant ceramic lining is conductive to make improvement of the production performance, the working efficiency, the reduction of maintenance costs and the increase profits.

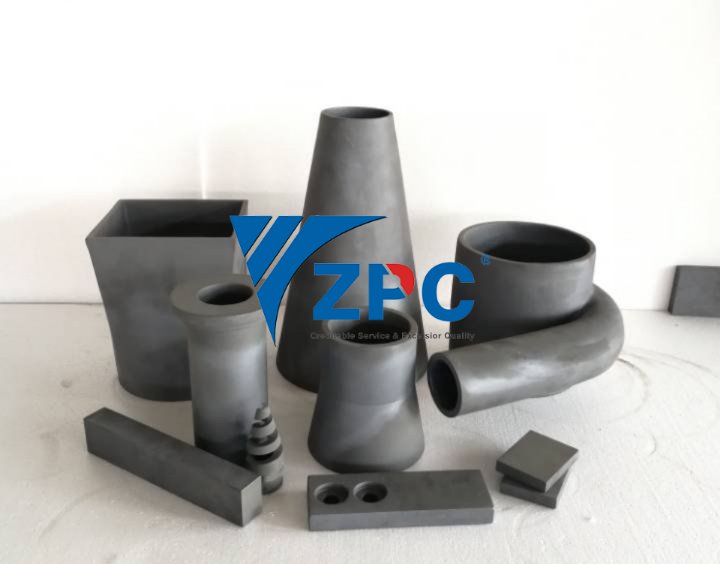

Precision ceramics have material knowledge, applied expertise and engineering skills. This can effectively ensure that the best solutions are offered to our customers. Silicon carbide ceramic tiles and lining are often used in applications such as cyclones, tubes, chutes, hoppers, pipes, conveyor belts and production systems. In the system, there are moving objects sliding on the surface. When the object slides on a material, it slowly wears the parts away until nothing remains. In high wear environments, this can happen frequently and cause a lot of expensive problems. The main structure is retained by using a very hard material, such as silicon carbide ceramics and alumina ceramics as a sacrificial lining. At the same time, silicon carbide ceramics can endure longer wear before it needs to be replaced, the silicon carbide ceramic service life is 5 to 7 times longer than alumina material .

Wear Resistant Silicon Carbide Ceramic Tiles & Lining Properties:
 Chemical resistant
 Electrically insulative
 Mechanical erosion & Abrasion resistant
 Replaceable

Advantages of Ceramic Wear Resistant Tiles & Linings:
 Can be used where tight tolerances or thin linings are required
 Can be used to resurface existing wear prone areas
 Can be used with multiple attachment methods like welding and adhesives
 Custom designed for specific applications
 Highly corrosion resistant
 Lightweight wear reduction solution
 Protects moving parts that are subject to high wear environments
 Significantly outlasts & outperforms wear reduction solutions
 Ultra-high maximum use temperature of up to 1380°C

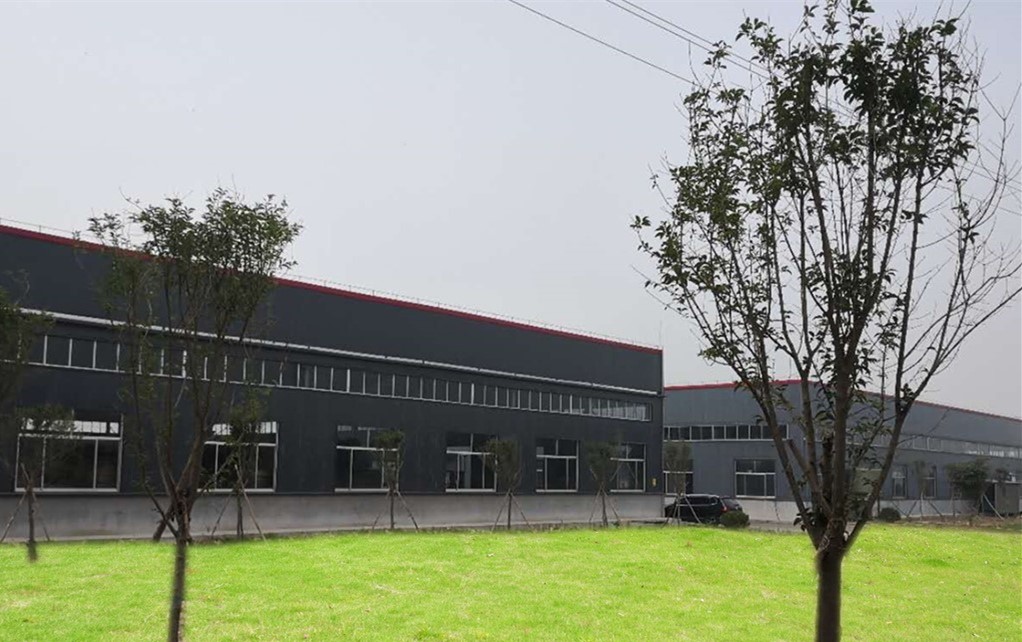

Factory

Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China.  SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.
