Silicon carbide ceramic products
The service life of silicon carbide ceramic products is 3-10 times that of 92% alumina products. Silicon carbide ceramics are the industrial ceramics with the highest hardness which can be matured and applied at present. Alumina ceramics and zirconia ceramics have been gradually replaced in many working conditions. Silicon carbide ceramics have strong plasticity and can produce many kinds of special-shaped parts and large size parts.
| ITEM | /UINT | /DATA |
| Max Temperature of Application | ℃ | 1380℃ |
| Density | g/cm³ | >3.02 g/cm³ |
| Open Porosity | % | <0.1 |
| Bending Strength | Mpa | 250Mpa(20℃) |
| Mpa | 280 Mpa(1200℃) | |
| Modulus of Elastictiy | GPa | 330GPa(20℃) |
| Gpa | 300 GPa(1200℃) | |
| Thermal Conductivity | W/m.k | 45(1200℃) |
| Coefficient of Thermal Expansion | K-1*10-6 | 4.5 |
| Moh’s Hardness | 9.15 | |
| Vickers Hardness HV | Gpa | 20 |
| Acid Alkaline-proof | Excellent |

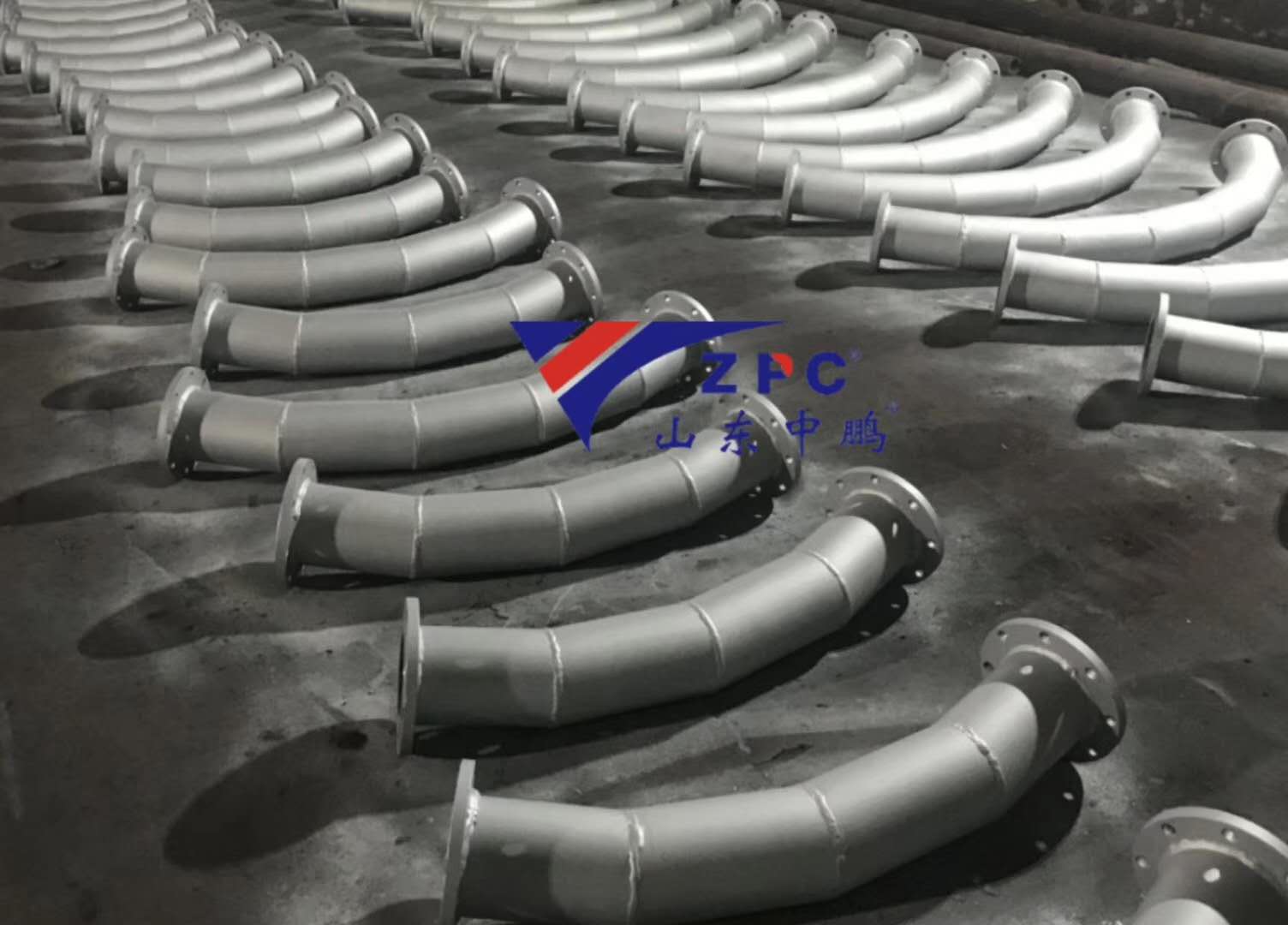

ZPC Reaction bonded silicon carbide liner is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying.Silicon carbide steel shell lined with products, due to its good abrasion resistance and corrosion resistance, is suitable for conveying powder, slurry, widely used in mining.
ZPC’s turn-key solution for hydrocyclone slurry separators and other mineral processing equipment delivers single-sourced, completed encapsulated assemblies in just weeks. Where required, our proprietary silicon carbide based formulations can be cast into complex shapes and then encased in polyurethane in-house, providing ease of installation, crack mitigation and added wear insurance, all while delivering a complete solution from one vendor. The special process reduces both cost and lead time for customers while providing a product with greater overall durability and reliability.
All proprietary silicon carbide based materials can be cast into very complex shapes, displaying tight and repeatable tolerances that ensure repeated ease of installation. Expect a more abrasion resistant product than cast steels, rubber and urethanes alone at one-third the weight of their steel counterparts.
Silicon carbide RBSC liner, is a kind of new wear-resistant material, the lining material with high hardness, abrasion resistance and impact resistance, high temperature resistance, acid and alkali resistance, corrosion resistance and other characteristics, the actual service life is 6 times more than Alumina lining. Especially suitable for highly abrasive, coarse particles in the classification, concentration, dehydration and other operations and it has been successfully applied in many mine.
Packaging and Shipping
Packaging: standard export wooden case and pallet
Shipping: by ship as per your order quantity
Service:
1. Provide sample for test before order
2. Arrange production on time
3. Control quality and production time
4. Provide finished products and packing photots
5. Delivery on time and provide original documents
6. After sale service
7. Continuous competitive price
We always believe that high -quality products and honest service is the only guarantee to maintain long-term cooperation with my clients !
Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China. SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.
