Wear resistance block, plates and inner lining

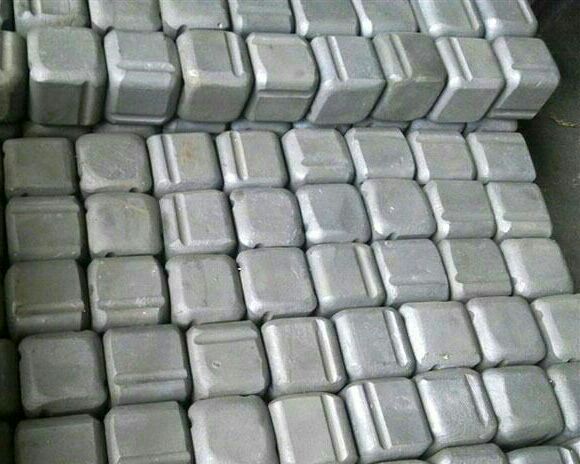

Ceramic Composite Impact Blocks, Wear-resistant ceramic block
This kind of wear-resistant sic block has the advantage excellent abrasion resistance, impact resistance, corrosion resistance. With the lock designed, this product is easier for application.

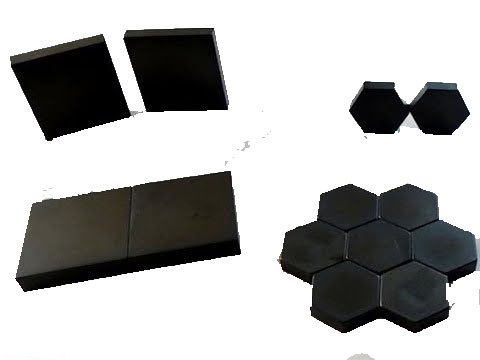

Ceramic plate and blocks for Rub–Cer Wear Plates
This is a new generation composite product combining a very high wear resistant surface of cylindrical SiC / Alumina ceramic pellets bound within a resilient rubber base. The extremely hard SiC new material ceramic surface provides exceptional resistance to wear, while the elastic property of the rubber dampens the impact forces.
The fact that each ceramic pellet is completely surrounded by rubber enhances the already outstanding wear resistant properties of the ceramic surface. The increase in liner life can vary from 8 to 15 times, depending on the application. Replacement of liners in difficult areas is both costly and time consuming, whilst the loss in production can often exceed the cost of the wear plate.
The increased liner life achieved using this product will more than compensate for the additional cost of the plates.

Application Areas

Feeders
Scoop Feeders for Mills
Screen Feed Plates
Launders
Feed Chute for Grinding Mills
Mill Discharge Chutes
Screen over / undersize chutes
Conveyer belt deflector plates
Conveyor transfer points
ZPC Ceramics wear-resistant product feature:
- Excellent wear and abrasion protection property.
- Excellent corrosion resistance property
- Excellent heat resistance property
- Excellent impact resistance property
- Excellent for ballistic protection

Size(mm): Customized, Max thickness suggestion is 45mm.
40*40*40
40*40*20
40*20*25
30*30*25
30*15*25
38*38*38

ZPC Ceramics wear-resistant product application industries:
- Mining
- Mineral processing (mineral beneficiation)
- Power generation
- Cement
- Petro-Chemical Refining and Production
- Coal washery
- Steel
- Defense (personal & vehicle armour).

Common items equipment need wear linings are: Agitators; Bends; Branches; Chutes; Classifiers; Cones; Cyclones; Distribution Box; Ejectors; Fans; Feeders; Hopper; Launders; Manifolds; Mills; Orifice; Pipes; Pipe Bends; Pipe fitting; Pulley lagging; Silos; Splitter Boxes; Spoons; Square Bends; Square to Round; Tanks; Troughs; Transfer points; T-Pieces; Y-Pieces etc.
We can supply you all kind of standard and customized ceramic products. Once you have any inquiry or need any product from us please feel free contact us.
