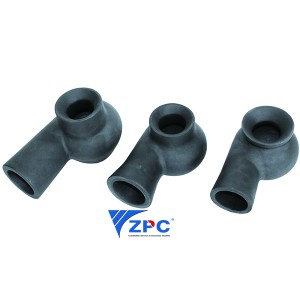

RBSC (SiSiC) desulphurization nozzles are the key parts of flue gas desulphurization system in thermal power plants and large boilers. They are widely installed in the flue gas desulphurizaiton system of many thermal power plants and large boilers.

Single direction nozzle

In the 21st century industries world wide will face increasing demands for cleaner, more efficient operations.

ZPC company is committed to doing our part to protect the environment. ZPC specializes in spray nozzle design and technological innovation for the pollution control industry. Through higher spray nozzle efficiency and reliability, lower toxic emissions into our air and water are now being achieved. BETE’s superior nozzle designs feature reduced nozzle plugging, improved spray pattern distribution, lengthened nozzle life, and increased reliability and efficiency.

This highly efficient nozzle produces the smallest droplet diameter at the lowest pressure resulting in reduced power requirements for pumping.

ZPC has:

• The broadest line of spiral nozzles including improved clog-resistant designs, wider angles, and a complete range of flows.

• A full range of the standard nozzle designs: tangential inlet, whirl disk nozzles, and fan nozzles, as well as low- and high-flow air atomizing nozzles for quench and dry scrubbing applications.

• Unparalleled ability to design, manufacture and deliver customized nozzles. We work with you to meet the toughest government regulations. We can meet your special requirements, helping you to achieve optimum system performance.

Brief Description of FGD Scrubber Zones

Quench:

In this section of the scrubber, the hot flue gases are reduced in temperature before entering the pre-scrubber or absorber. This will protect any heat sensitive components in the absorber and reduce the volume of the gas, thereby increasing the residence time in the absorber.

Pre-Scrubber:

This section is used to remove particulates, chlorides, or both from the flue gas.

Absorber:

This is normally an open spray tower that brings the scrubber slurry into contact with the flue gas, allowing the chemical reactions that tie up the SO 2 to take place in the sump.

packing:

Some towers have a packing section. In this section, the slurry is spread on loose or structured packing in order to increase the surface in contact with the flue gas.

Bubble Tray:

Some towers have a perforated plate above the absorber section. Slurry is deposited evenly on this plate, which both equalizes the gas flow and provides surface area in contact with the gas.

Mist Eliminator:

All wet FGD systems generate a certain percentage of extremely fine droplets that are carried by the movement of the flue gas toward the tower exit. The mist eliminator is a series of convoluted vanes that trap and condense the droplets, allowing them to be returned to the system. In order to maintain high droplet removal efficiency, the mist eliminator vanes must be cleaned periodically.

Hollow cone Tangential Whirl TH Series

Design

• Series of right angle nozzles using a tangential inlet to produce the whirl

• clog-resistant: nozzles have no internal parts

• construction: one-piece casting

• connections: flanged or female, NPT or BSP threads

Spray characteristics

• Extremely even spray distribution

• Spray patterns: hollow cone

• Spray angles: 70° to 120°

• Flow rates: 5 to 1500 gpm (15.3 to 2230 l/min)

With special sizes to meet your exact specifications

Full Cone Spiral Nozzle

ST, STXP, TF, TFXP Series

Design

• The original spiral nozzle

• High discharge velocity

• High energy efficiency

• clog-resistant: one-piece construction with no internal parts

• construction: one, two or three-piece casting

• connections: NPT or BSP threads male connection standard, female threads and flanged connection available by special order

Spray characteristics

• Fine atomization

• Spray pattern: full and hollow cone

• Flow rates: 0.5 to 3320 gpm (2.26 to 10700 l/min) higher flow rates available

Material: Reaction Bonded Silicon Carbide (RBSC)

Sizes: 0.75 inch, 1.2 inch, 1.5 inch, 2 inch, 2.5 inch, 3 inch, 3.5 inch, 4 inch, 4.5 inch and according to your specific requirements.

Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China.  SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.
