Silicon carbide bulletproof plate and tiles

Short Description:

  Product Description Silicon Carbide Bulletproof Plate and tiles -Ballistic Material : Silicon carbide ceramic  -Weight: we can provide you different armor solutions for your specific needs -Applications: hard armor plates are being widely used for Bulletproof Vest, ballistic shield,school backpack,bulletproof wall and door,vehicle armor,vessel armor and etc. -Construction i) ICW.(short for In Conjuction With),means the HARD armor plate has to be used along with a level IIIA or lower th...


  • Port: Weifang or Qingdao
  • New Mohs hardness: 13
  • Main raw material: Silicon Carbide
  • Product Detail

    ZPC - silicon carbide ceramic manufacturer

    Product Tags



    Product Description

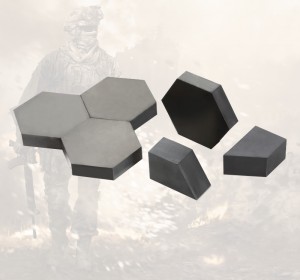

    Silicon Carbide Bulletproof Plate and tiles

    -Ballistic Material : Silicon carbide ceramic

    -Weight: we can provide you different armor solutions for your specific needs

    -Applications: hard armor plates are being widely used for Bulletproof Vest, ballistic shield,school backpack,bulletproof wall and door,vehicle armor,vessel armor and etc.

    -Construction
    i) ICW.(short for In Conjuction With),means the HARD armor plate has to be used along with a level IIIA or lower threat SOFT armor panel to perfectly protect against the III/IV rating rifle threats,which actually lighter than SA. plates but not tough enough
    ii) SA.(short for Stand Alone),means the HARD armor plate can protect against the III/IV rating rifle threats without any SOFT armor panels.♥Popular♥

    -Plate Curvature: single curved /multi curved /flat

    -Plate Cut Style :shooters cut / Square cut / SAPI cut / ASC /upon request

    Silicon carbide ceramics plate

    SIC specifications

    Density 3.14 g/cm3
    Elastic modulus 510 Gpa
    Knoop Hardness 3300
    Flexural strength 400-650 Mpa
    Compressive strength 4100 Mpa
    Fracture toughness 4.5-7.0 Mpa.m1/2
    Coefficient of thermal expansion 4.5×106
    Thermal Conductivity 29 m0k
    Maximum permissible service temperature in air 1500°C
    Related products:

    Boron Carbide Ballistic Tiles

    It has superior characterics ,such as wear resistance, corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time servise life.

    Widely used in heavy armored protection in planes/vehicles/ships, and high-class physical protection.
    B4C specifications
    Density 2.50-2.65 g/cm3
    Elastic modulus 510 Gpa
    Knoop Hardness 3300
    Flexural strength 400-650 Mpa
    Compressive strength 4100 Mpa
    Fracture toughness 4.5-7.0 Mpa.m1/2
    Coefficient of thermal expansion 4.5×106
    Thermal Conductivity 29 m0k
    Maximum permissible service temperature in air 1500°C






  • Previous:
  • Next:

  • Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China.  SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.
